Major Wire & Cable Manfucturer
Phase 2 - Sept 12th

MERRITT DAVIS 4.5” Extrusion Line [ID 203]

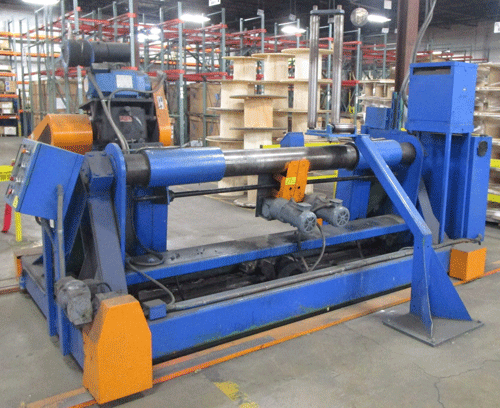

 - MERRITT DAVIS 84” Traversing Motorized Payoff, MARATHON ‘Black  Max’ AC Motor,  Drive-all; w/Dancer, 16” Sheaves, 4x3
- MERRITT DAVIS 4.5” 24:1 L/D Extruder, #WC02651-01, Screw, 14:1 Gearbox Ratio, US 200HP DC Motor; Hopper Loader; NO Crosshead
- Temperature Panel, #WC02651-04, 480/3/60, 9-Zone 7EM Controllers; ZUMBACH USYS Diameter Controller w/Touch Screen
- Drive Cabinet w/CONTROL TECHNIQUES Quantum III Digital DC Drive
- Water Trough, 6” x approx. 100’, Stands
MERRITT DAVIS Caterpuller Capstan, Model CAT-TRAK 80, #0-008-258; 5.5” wide belt, Motor (YASKAWA F7 Drive in Temperature Panel)
- ZUMBACH ODAC 110XY Scanner Head, #110XYJ-0414.001
- ZUMBACH KW32 Trio Lump Detector
- MERRITT DAVIS Take-up Dancer, Model H80-H15 TU, #0-003-259, 16” Sheaves
2 - MERRITT DAVIS 84” Traversing Take-ups, Model TURA 84,            #0-003-261, #0-003-260, 5HP Motors, Guide Stands  (Take-up #1 has MARATHON ‘Black Max’ AC Motor;  Take-up #2 has US DC Motor)

WELEX 2” Extrusion Line [ID 407]

-  DAVIS STANDARD 36” ‘Half-Moon’ Shaft Payoff
- ENTWISTLE Dual Flyer Cone Payoff w/Reel Trucks
- DAVIS STANDARD Tension Stand
- ZUMBACH/WST Preheater, Econo Model 310FL 2530, #310FL25320-10950-0, 25KVA, rated 4000FPM
- WELEX 2" 24:1 L/D Extruder, Nylon, Model 200-24:1, #1492, 1979, Screw, Crosshead, 30HP AC Motor, PREMIER Hopper Loader
Temperature Panel w/DURA PULSE 30HP AC Drive
- Water Trough, 4” x 30’ approx., Stands
- NEXTROM 14” Multipass Capstan, MARATHON 5HP AC Motor w/Drive
- TEC Take-up Dancer, 14”, 6x5
- DAVIS ELECTRIC TAP-30 Dual Reel Take-up, #0002055
- Temperature Panel, DURA PULSE 50HP AC Drive, ZUMBACH 8100 USYS Controller, #2704.2002.20.1 (from the removed D/S 2.5” Extruder)

ENTWISTLE 4.5” Extrusion Line [ID 176]

-  60’ approx. Horizontal Payoff Accumulator, 5x5, 16” Sheaves
- DAVIS ELECTRIC Dancer, Model 8” Dancer, #1102-R, 4x3
- ENTWISTLE 4.5” 24:1 L/D Extruder, Screw, RELIANCE 150HP DC   Motor, Hopper, Hopper Loader
- Extra 4.5” Extruder Screw
- Temperature Panel, Touch Screen; ZUMBACH USYS 2100 Diameter Controller, #0137.0065; CONTROL TECHNIQUES Mentor II Digital DC Drive
- Paper Tape Payoff (under Temp Panel)
- 8” x 65’ approx. S.S. Water Trough, Air Wipe, Stands
- DAVIS STANDARD 48” Dual Wheel Capstan, MARATHON 10HP AC   Motor (YASKAWA A1000 Drive in Temp Panel)
- 60” Caterpuller Capstan, 3.5” wide belt, MARATHON 10HP AC Motor (EMERSON Unidrive in Temp Panel)
- ZUMBACH ODAC Diameter Head, ODAC 82DT100-1, #9253.0001, 2001 (by Extruder)
- ZUMBACH ODAC 110XY Diameter Head, ODAC 110XY-J,     #2807.3349.10.1 (by Caterpuller)

MERRITT DAVIS 3.5” Extrusion Line [ID 205]

- 1 - MERRITT DAVIS 3.5” 24:1 L/D Extruder, Screw, OMRON 150HP    AC Motor
- 1 - MERRITT DAVIS 3.5” 24:1 L/D Extruder, Screw, OMRON 100HP    AC Motor
- Temperature Panel w/YASKAWA A1000 Drive for the 100HP Motor;   YASKAWA F7 Drive for the 150HP Motor; Operator Control Station
- 45’ approx. Horizontal Overhead Take-up Accumulator, 8x8, 16”   (YASKAWA A1000 Drive in Temp Panel)

DAVIS STANDARD 3.5” Extrusion Line [ID 201]

- FINE 48” Drag Payoff w/Electric Brake, Model NBPO-48-2, #F9-90126, 2009
- 45’ approx. Horizontal Overhead Payoff Accumulator
- DAVIS STANDARD 3.5” 20:1 L/D Extruder, Model 35T, #E1875,       S.O. #27794C, Screw, NO Motor
- 6” x 50’ approx. S.S. Water Trough, #286-52062, Stands
- 48” Belt Wrap Capstan, MARATHON 10HP AC Motor, NO Drive
- 30’ approx. Horizontal Take-up Accumulator, floor mounted,    YASKAWA 5HP A1000 Drive
- ENTWISTLE 48” Dual Reel Take-up, Model SD50P4, #104, 5HP Vector  Motor w/YASKAWA A1000 Drives

DAVIS STANDARD 3.5” Extrusion Line [ID 175]

- ENTWISTLE Dual Flyer Cone Payoff w/DAVIS STANDARD Reel Trucks w/FINCON 2330 DC Motor Controls
- CLIPPER Tension Stand, #80700-BC103
- FINE Preheater, Model IP500-250-10/240V, #F-50825, 2005
- DAVIS STANDARD 3.5” 24:1 L/D Extruder, Model 35IN35, #M5065, S.O. #05861, 1992, Screw, 17.39:1 Gearbox Ratio, MARATHON        100HP AC Motor w/A/B 755 Power Flex Drive; Hopper Loader
- Temperature Panel w/9-Zone AUTOMATION DIRECT Controllers
- MPM 2” 20:1 Extruder, Nylon, Screw, Crosshead, Motor
- Temperature Panel w/8-Zone AUTOMATION DIRECT Controllers
- 2 - DAVIS STANDARD 1.5” Striping Extruders w/10HP Vector AC Motors
- Drive Cabinet w/2 – DURA PULSE 10HP Drives, Operator Control Station inside the Cabinet, OMRON 5-Zone Controllers for each       Extruder
- Water Trough, 4” x approx. 20’, Stands
- DAVIS ELECTRIC Multipass Capstan
- MEDEK & SCHOERNER Band Marker
- Band Marker (believe MEDEK & SCHOERNER)

DAVIS STANDARD 3.5” Extrusion Line [ID 174]

- Dual Cone Flyer Payoff w/Reel Trucks (missing one)
- CLIPPER Tension Stand, TB8-200-P5299-51980 (missing a Sheave)
- FINE Preheater, Model IP350-380-16/240V
- DAVIS STANDARD 3.5” 20:1 L/D Extruder, Model 35T, #E1400,       S.O. #21938C, Screw, MARTHON          75HP AC Motor w/DURA PULSE     75HP Drive
- Temperature Panel w/6-Zone AUTOMATION DIRECT Controllers      w/ZUMBACH Touch Screen
- Band Marker (believe to be MEDEK & SCHOERNER)
- GEM GRAVURE Printer
- Printer (no name seen)
- VITECK 12” Multipass Capstan, Model LTM-12-220, #0004-819,   w/DURA PULSE 10HP Drive (in main Temp Panel)
- Spare Temperature Panel, 7-Zone AUTOMATION DIRECT     Controllers; DURA PULSE 40HP Drive

VARIOUS EQUIPMENT

COOK BH-48 S.T. Cabler, #1298, 1982, MARATHON 50HP Motor [ID 828]

COOK Binder Head, Model B.W.T.-1, #514, 1982

10 - 48” Dia. x 29.5 OAW x 22” Barrel x 8” Arbor Hole, Steel Reels  (for COOK Cabler)

GODERIDGE 1250mm D.T. Cabler, #30-006, 10/89, BALDOR 150HP DC Motor, w/Change Gears, Operator Console, Drive Cabinet, CLINTON HF20E Spark Tester [ID 831]

10 - 48” Dia. x 30” ID (32” OAW) x 25” Barrel x 2.5” Arbor Hole, Steel Reels (Brown, 48” for GODERIDGE Cabler)

48" Drum Twister, Model 48”/36” Rotating Back Twister, #310, 8” Reel Arbor, MARATHON 30HP AC Motor; Operator Panel; Drive Cabinet with YASKAWA A1000 and CONTROL TECHNIQUES Drives [ID 235]

10 - 48” Dia. x 28” ID ( 30” OAW) x 24” Barrel x 8” Arbor Hole, Steel Reels (Blue, for the Drum Twister

CABALLE 48-Position 560mm Payoff, Model DMS560, #A-2000 [ID 235]

250 approx. – HEARL HEATON 22” Dia. x 9” ID (11” OAW) x 8” Barrel        x 1.5” Arbor Hole, Reels (Yellow, on Pallets, for the Payoff)

CARTER LLOYD INC 30" D.T. Cabler Line, w/4-Wire 30” Powered Payoff,    Pre-Twister, Drain Wire Payoff, Longitudinal Tape Stand, MAGNETEK 10HP AC Motor w/ YASKAWA A1000 Drive (LLOYD & BOUVIER rebuild)     [ID 182]

MORISON MACHINERY 30" D.T. Cabler Line w/4-Wire 30” Powered Payoff, Pre-Twister, Drain Wire Payoff, Longitudinal Tape Stand, MARATHON 10HP AC Motor w/ YASKAWA A1000 Drive (LLOYD & BOUVIER rebuild)   [ID 181]

NE/CFL 30" D.T. Cabler Line w/4-Wire 30” Drag Payoff, Drain Wire Payoff, Longitudinal Tape Stand, 10HP DC Motor w/FINCOR Drive (LLOYD & BOUVIER rebuild) [ID 183]

NEW ENGLAND BUTT 48-Carrier CB-1 Cable Braider, 6” Horn Gears, Wire Carriers, 36” Capstan, Motor [ID 260]

            - ENTWISTLE 72" A-Frame Take-up, Model GM-VSC-1, #111

WARDWELL 24-Carrier Braider, Wire, Motor [ID 263-1]

          -DAVIS STANDARD 72" Take-up, MARATHON 10HP AC Main Motor, 5HP AC Traverse Motor w/YASKAWA A1000 Drives

WARDWELL 24-Carrier Braider, Wire, Motor [ID 263-2]

          - ENTWISTLE 72" Take-up, MARATHON 10HP Motor w/YASKAWA      A1000 Drive

5 - WARDWELL 16-Carrier Braiders, Model G, Wire, 36" Payoff & Take-up Stands [ID’S 261-1 > 261-5]
Lot of WARDWELL Change Gears

KENRAKE WST-200 Spiral Striper, #5250, 10’ Oven [ID 452]

16” Spooler (next to KENRAKE)

DAVIS STANDARD 84” Shaftless Take-up, MARATHON 10HP AC Motor w/ YASKAWA A1000 Drive [ID 238]

DAVIS STANDARD 84” Shaftless Take-up, Model 42x84x54, #C-9287,    S.O. #27527-C, MARATHON 5HP AC Motor w/ YASKAWA A1000 Drive   [ID 233]

DAVIS STANDARD 84” Shaftless Take-up, Model 84-64 Inch, #G2302,  S.O. #90670, MARATHON 5HP AC Motor w/YASKAWA A1000 Drive           [ID 234]

CHESNEY 12” Eccentric Taping Head, Control, 3HP DC Motor w/Drive-All  [ID 234]

POPS 84" Portal Payoff, #43096101 [ID 850]

DAVIS ELECTRIC 72” Shaftless Take-up, MARATHON 5HP AC Motor w/YASKAWA A1000 Drive [ID 236]

18” Concentric Taping Head, 6” Core, 10HP DC Motor [ID 236]

TULSA 84" Payoff [ID 252]

FINE 36" Payoff [ID 805]

24+ – HUESTIS 36” Drag Payoffs

1 – WATSON 60” Dual Wheel Capstan Assembly, #w6259, L-R, 5x4, 2.5” Grooves   [ID 233]

WMCA 24” Concentric Taping Head, #35283, Line Shaft Driven [ID 233]

1 – NEW ENGLAND BUTT 60” Dual Wheel Capstan Assembly, R-L, 6x5, 2.5” Grooves, 5HP Vector Motor, NO Drive [ID 232]

18” Eccentric Taping Head, 6” Core, 5HP AC Vector Motor, NO Drive [ID 232]

VITECK Dancer/Accumulator [ID 805]

WINDING D500 Spooler, NO Controls

3 - Extruder 4.5" Extruder Screws for ENTWISTLE 4.5” 24:1 Extruder

Temperature Panel, 8-Zone AUTOMATION DIRECT Controllers, NO Drive, w/ZUMBACH IPC-1J Controller, #1302.1016377.05, Touch Screen [ID 809]

3 - PREMIER 15HP Bulk Conveying Blowers, Model 5158-33R

1 - AEC Granulator, Model ESH-500-000, #GSH50600304001, 28x28 throat opening, 100HP/230-460v Motor, w/Control, Hopper, Vacuum Loader, Conveyor

4 - PEABODY 9' Diameter Bolted Silos

3 - WULFTEC WHP-200 Stretch Wrappers

2 - AH 1/2T Free Standing Jibs

1 - EJR Shaftless Take-up, Model 561-36, #1125561-12 20 01, 1.5” Pintles,       5HP AC Motor; Guide Stand

3 - FERRO TECHNIQUE FDPO 24" Payoffs, #9451

2 - GEHNRICH Curing Ovens, #8370

1 - FINN-POWER Crimper, Type CC221S, #11-CC221S-16603, 2003

1 - BRABENDER Lab Extruder, Model D-52, #706011

1 - NIKON Optical Comparator, Model 6C

1 - ROOTS TECH Preheater, Model RT717N3194TRB15-L253, 17kW, 36A,          Input 480v, rated 2000fpm, 10-26ga; 700fpm, 10ga

1 - ZUMBACH Preheater, Econo Model 310FL2530, 25KVA, Input 460v,       rated 4000fpm

1 - GODDERIDGE 24” Concentric Taping Head, Type RUB.C, #40013, 1991, 6” Core (At Rewind Area)

1 - NORDSON ECC300 Talc Applicator, P/N 783301, #LU00K08697, 2000     (Asset #202170)

1 - NORDSON ECC300 Talc Applicator, P/N 783301. #LU01A00378, 2001     (Asset #201813)

REELS

- 19 – 39” Dia. x 24” ID (26.5” OAW) x 19” Barrel x 3.25” Arbor Hole, Steel Reels (near ID 176)
24 – 30” Dia. x 14” ID (15” OAW) x 17” Barrel x 1.5” Arbor Hole, Steel Reels (Near ID 234)
REELS: 84”, 72”, 60” ….. Quantities to be confirmed

2 – Compound Hoppers

         1 – 8’ (at rewind Area)
         1 – 12’ (at 234 Line)

Warehouse Shelving

LOT - ZUMBACH Scanner Heads: ODEX 10, ODAC 18XY, ODAC 30,            ODAC 32XY, ODAC 34XY, ODAC 64XY, ODAC 76XY, ODAC 63TRIO,    KW 32 TRIO
